OE-spec A/C hose AV6119N601AF fits Ford Focus MK3/C-MAX 1.6 TDCi. As the manufacturer, we offer material, structure and private label customization. Each part passes leak testing for reliable aftermarket replacement.
OE NUMBER: AV6119N601AF
APPLICATION CAR: Ford
SIZE: STANDARD
WARRANTY:1 year
ACCEPTED OEM SERVICE:YES
MOQ:100pcs
PACKAGE:Plastic bag+ Carton + Pallet or According to our customer's request
LOGO:Laser marking our customer's LOGO on the products
DELIVERY TIME:30 DAYS, If new model, it will be 45 days.
Item NO.:
AV6119N601AFOrder(MOQ):
100Payment:
TT, LC, PAYPALProduct Origin:
CHINAColor:
OEM STANDARDShipping Port:
SHANGHAI OR NINGBOLead Time：
30 DAYSProduct Description

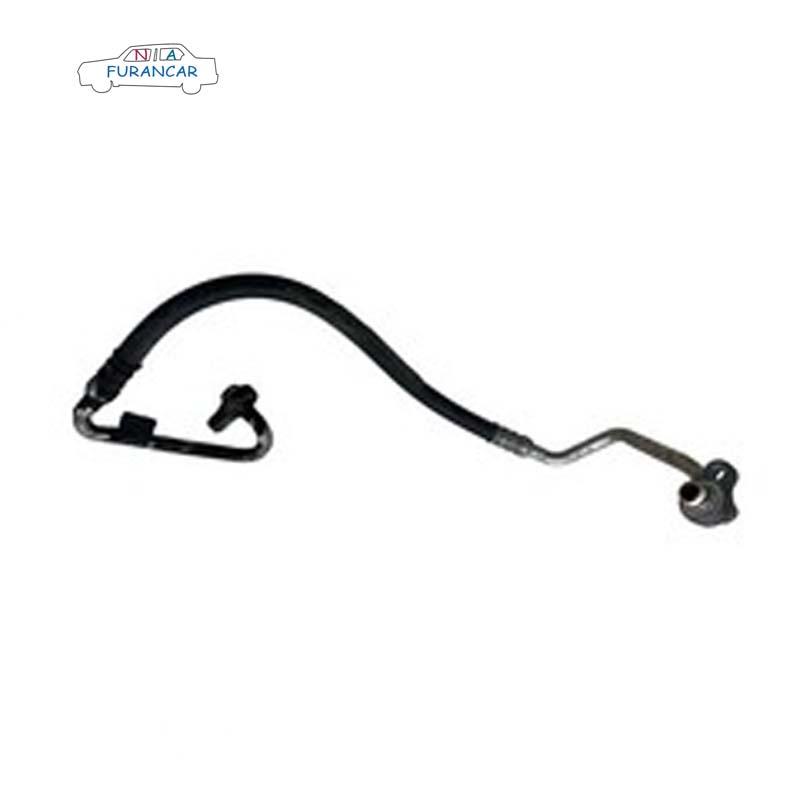

Product Name: AV6119N601AF Air Conditioning Hose for Ford Focus MK3 C-MAX 2011-2018 1.6 TDCi Diesel
The AV6119N601AF is an OEM-standard high-pressure A/C discharge hose specially manufactured for Ford Focus MK3 and C-MAX 1.6 TDCi diesel models. As a professional aftermarket replacement part, this hose strictly follows original OE dimensions, mounting positions and performance parameters to achieve 100% direct fit without modification. Adopting high-temperature and high-pressure resistant EPDM rubber and aviation-grade aluminum fittings, it effectively solves common aftermarket problems such as refrigerant leakage, hose aging, cracking and pressure loss. All products undergo strict air tightness and pressure testing before delivery, ensuring stable and durable air conditioning system operation under extreme vehicle working conditions.
Attribute Name
Attribute Value
Primary OE Number
AV61-19N601AF (AV6119N601AF)
Interchangeable OE Numbers
AV6119N601AF, AV61-19N601 series, CV6Z-19972-A (cross-reference check required)
Product Type
A/C Air Conditioning Discharge Hose (High Pressure Line)
Applicable Vehicle Models
Ford Focus MK3, Ford C-Max MK2, Ford Grand C-Max
Production Year Range
2011 - 2018
Engine Compatibility
1.6 TDCi Diesel (Engine Codes: T3DA, T3DB, T1DA, T1DB, NGDA)
Engine Power Output
95 HP (70 kW) / 115 HP (85 kW)
Refrigerant Type
R134a
Hose Length
Approx. 650mm (OE matching exact length)
Installation Position
Compressor to Condenser High Pressure Line (Engine Bay, Upper Right Side)
Core Hose Material
EPDM Rubber (inner layer), Aluminum Tube (middle section), Steel Reinforcement Braid
Fitting Material
High-grade Aluminum Alloy + Steel Fittings
Pressure Rating
Up to 300 PSI (20 bar) Burst Pressure
Temperature Resistance Range
-40°C to 140°C (-40°F to 284°F)
Included Components
Sealing Gaskets, Vibration Protection Spring Sleeve
Condition
New Aftermarket (OEM Quality Standard)
Warranty
12 Months
Certification
ISO/TS 16949 Certified, OEM Quality Compliance
Packaging & Shipping
Product Showcase
Why Partner With Us?
A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.
2. Q: How long is your delivery term?
A: Our standard product delivery term is normally 30 days.A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.
3. Q: How many years is your company in auto parts business field?
A: Our Company started since 2005,there is about 19 years history forus in auto parts business field.
4. Q:Are you trading company or factory?
A: We are factory with trading company.
5. Q:What's the MOQ for each item?
A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
Product FAQs:
1. Q: Do your AC hoses meet OEM specifications?
A: Yes. We manufacture hoses according to OEM specifications and can also develop custom products based on OEM numbers, technical drawings, or samples.
2. Q: How do you test the sealing performance of AC hoses?
A: Every hose undergoes air leakage and pressure testing before shipment to ensure excellent sealing performance and long-term reliability.
