OE 8200538940 Renault AC hose. Factory offers OE-standard ready stock plus custom logo, packaging and specs. All assemblies undergo strict leak testing for reliable aftermarket use.
OE NUMBER: 8200538940/8200247438
APPLICATION CAR: Renault
SIZE: STANDARD
WARRANTY:1 year
ACCEPTED OEM SERVICE:YES
MOQ:100pcs
PACKAGE:Plastic bag+ Carton + Pallet or According to our customer's request
LOGO:Laser marking our customer's LOGO on the products
DELIVERY TIME:30 DAYS, If new model, it will be 45 days.
Item NO.:
8200538940Order(MOQ):
100Payment:
TT, LC, PAYPALProduct Origin:
CHINAColor:
OEM STANDARDShipping Port:
SHANGHAI OR NINGBOLead Time：
30 DAYSProduct Description

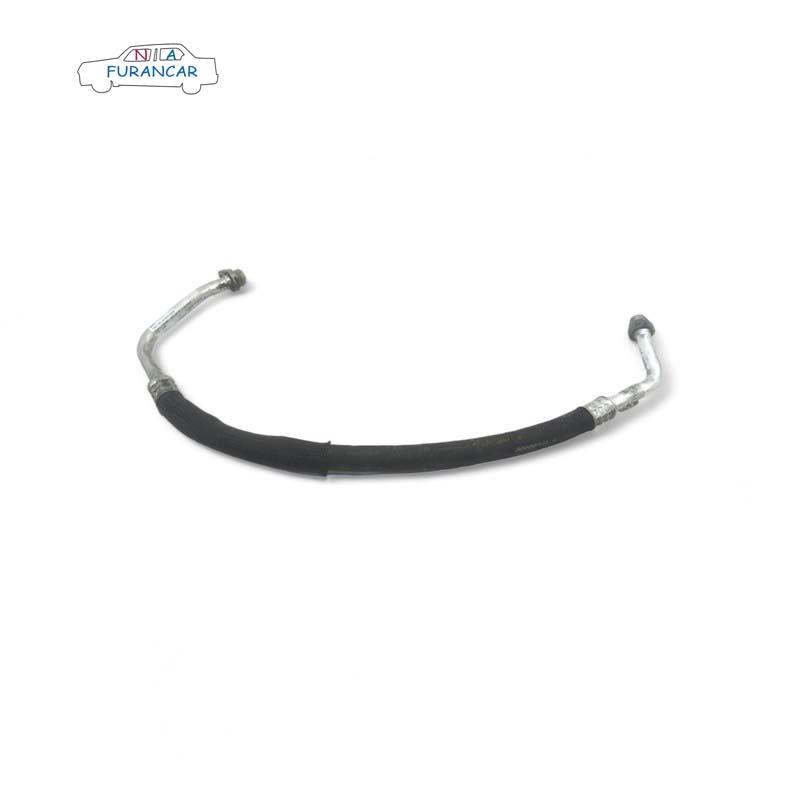

Product Name: 8200538940 8200247438 Air Conditioning Hose for Renault Megane II Scenic II Grand Scenic II 2002-2009
OE 8200538940 A/C hose assembly for Renault Megane II & Scenic II 1.5 dCi. We are a professional aftermarket manufacturer, supporting both standard OE-spec stock orders and flexible custom solutions to meet your market demands.
Item
Details
OE Part Number
8200538940
Product Name
Air Conditioning Pipe / A/C Hose Assembly (AC High-Pressure Line)
Vehicle Make
Renault (French automotive manufacturer)
Compatible Vehicle Models
Renault Megane II (BM0/CM0/KM0), Renault Scenic II (JM0), Renault Grand Scenic II
Applicable Model Year
2002 – 2009 (pre-facelift & facelift)
Engine Model
1.5L K9K dCi (inline-4 common-rail diesel turbo)
Engine Displacement
1461 cc (Bore × Stroke: 76 mm × 80.5 mm)
Engine Power Output
60 kW / 82 HP (K9K 722) ; 74 kW / 101 HP (K9K 728/732) @ 4000 rpm
Engine Torque Output
185 N·m @ 2000 rpm (82 HP) ; 200 N·m @ 2000 rpm (101 HP)
Installation Position
Air conditioning system — high-pressure line from A/C compressor to condenser (radiator side)
Overall Pipe Length
620 mm (OE standard dimension, end-to-end along hose centerline)
Material Construction
Inner layer: refrigerant-resistant NBR rubber; Middle layer: high-tensile polyester braided reinforcement; Outer layer: weather & ozone resistant EPDM rubber; End fittings: precision crimped steel/aluminum alloy connectors with OEM-spec sealing beads
Refrigerant Compatibility
R134a (HFC-134a)
Operating Pressure Range
Up to 3.0 MPa (high side)
Operating Temperature Range
-40°C to +125°C
Replacement / Cross Reference OE Numbers
8200170313, 8200247445, 8200359686, 8200385296, 8200682827, 818517
Core Function
Transports high-pressure refrigerant gas between A/C compressor and condenser, ensuring efficient cooling cycle and preventing refrigerant leakage
Key Aftermarket Features
OE-spec direct fit, no modification required, leak-proof crimped joints, UV & ozone resistant outer cover, factory pressure-tested at 1.5× working pressure
Common Failure Symptoms
Refrigerant leak causing weak A/C cooling, oily residue around hose joints, hissing noise from engine bay, A/C compressor rapid cycling
Application Scenarios
Professional A/C system repair & retrofit, cross-border auto parts retail, used car reconditioning, body shop collision repair, fleet maintenance
Quality Standard
ISO/TS 16949 compliant, 100% helium leak test before shipment
Warranty
12 months / 20,000 km (whichever comes first)
Packaging
Neutral polybag + carton, or customized brand packaging available (MOQ applies)
OEM & ODM Service
Product Showcase
Why Partner With Us?
A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.
2. Q: How long is your delivery term?
A: Our standard product delivery term is normally 30 days.A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.
3. Q: How many years is your company in auto parts business field?
A: Our Company started since 2005,there is about 19 years history forus in auto parts business field.
4. Q:Are you trading company or factory?
A: We are factory with trading company.
5. Q:What's the MOQ for each item?
A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
Product FAQs:
1. Q: Do your AC hoses meet OEM specifications?
A: Yes. We manufacture hoses according to OEM specifications and can also develop custom products based on OEM numbers, technical drawings, or samples.
2. Q: How do you test the sealing performance of AC hoses?
A: Every hose undergoes air leakage and pressure testing before shipment to ensure excellent sealing performance and long-term reliability.
