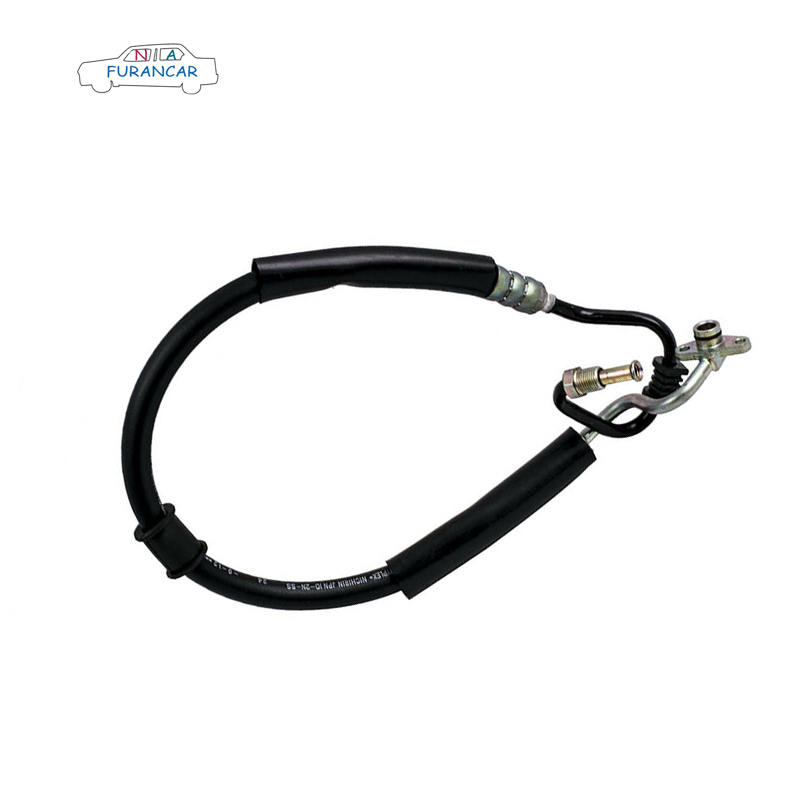

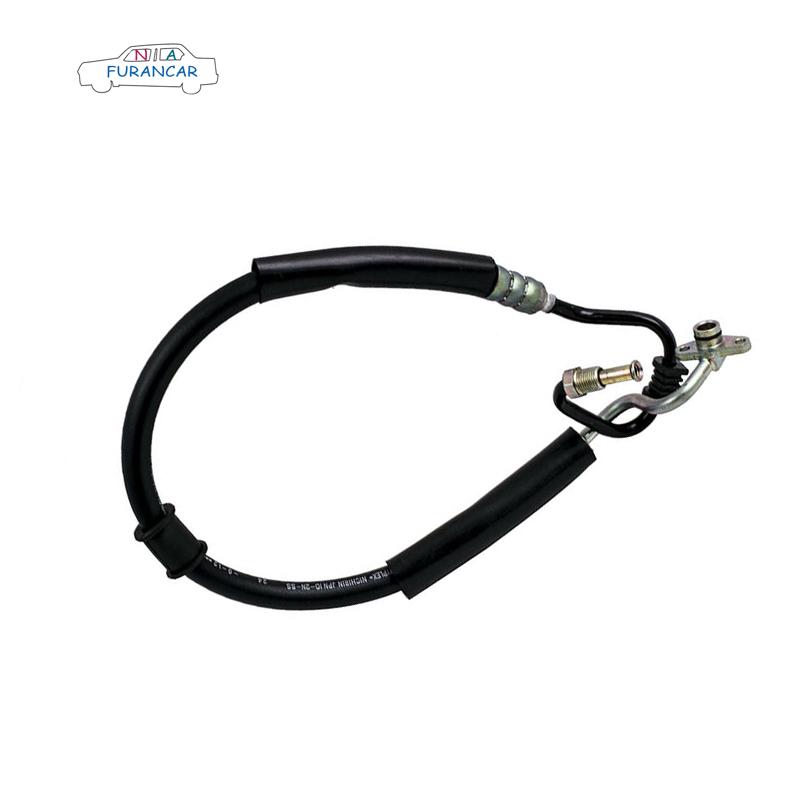

53713SX8T02 Honda power steering hose Hydraulic hose

Buy power steering hose replacement, OE number 53713-SX8-T02 , Hydraulic hose, steering system, Fit for HONDA ACCORD, Good quality, from China manufacturer, with more than 16 years experience.

  • Item NO.:

    53713-SX8-T02
  • Order(MOQ):

    50
  • Payment:

    TT, LC, PAYPAL
  • Product Origin:

    CHINA
  • Color:

    OEM STANDARD
  • Shipping Port:

    SHANGHAI OR NINGBO
  • Lead Time:

    30 DAYS

53713SX8T02 Honda power steering hose Hydraulic hose

   The high pressure tube is a tube coming out of the steering power pump to the steering engine, and then the low pressure return tube is a flow that goes through the oil cooler in front of it, or the steering cooling oil tube and then back to the reservoir, and then from the steering fluid reservoir to the power pump.
   The actual structure of the tube is also different. The high pressure tube is made of multiple layers of cord fabric or steel wire, while the low pressure tube may be a braided layer, mainly according to the design of the system pressure, the high pressure tube requires 10Mpa, while the low pressure tube is only 1Mpa pressure.



OE NUMBER: 53713-SX8-T02

APPLICATION CAR: HONDA ACCORD

SIZE: same as original sample

Surface treatment:BLACK or ZINC

WARRANTY: 2 YEARS

ACCEPTED OEM SERVICE: YES

MOQ: 50pcs

PACKAGE: Plastic bag+ Carton + Pallet or According to our customer's request

LOGO: Laser marking our customer's LOGO on the products

DELIVERY TIME: 30 DAYS, If new model, it will be 45 days.

honda accord 53713SX8T02 pressure hose


ITEM STANDARD RESULT
Impulse Test Oil temperature: 135 ± 2Environment

temperature: 135 ± Circulating
temperature
: 10.3Mpa,Cycle frequency:30-40time/min, >225,000time

230,000 times in good condition 230,000 times in good condition
Tensile test Tension rate:25 ± 3mm/min,>5337.9N 6,118N in good condition 6,201N in good condition
Low Temperature Test -40 ± lt*24h NO CRACK NO CRACK
Adhesion Test Tension rate:25 ± 3mm/min,^17.51N/CM 45.57N/CM 49.68N/CM 40.09N/CM
Explosive Force Rate ofPressureRisel71.5 ±68.6Mpa,^41.4Mpa 60.02Mpa 65.88Mpa
Ozone Resisting 50 pphm*40t*70h NO CRACK NO CRACK
Inside Volume Expansion 8.97 ± 0.14Mpa,38ml/Ft 5.51ml/Ft 5.68ml/Ft 5.54ml/Ft
Length Change Pressure0-10.3Mpa,length less-5%~+2% 1.00% 0.75%
100%Compression Resistance Testing Air:10.3Mpa*30 60s; Oil or Water: 13.8Mpa*30-60s, NO-LEAKING NO-LEAKING

power steering hoses replacement


WHY CHOOSE US?

    Ningguo Friend Trading Co., Ltd has around more than 700 kinds of power steering hoses. And we have professional techanical department. Our factory do the phosphating, tube cutting, polishing, assembly, high pressure testing processes all by ourselves. We have around 15 sets of Auto tube bending machines. So that we can make the sample according to your samples or drawings within 10-20 days. And for the items which we have produced, we can provide the sample or drawings for your confirmation directly.

    Our factory production capacity is 5,000 pieces of hoses within one day. The delivery time can be promised for you. We also can pack the Power steering hoses according to your requirments and laser print your LOGO on the pipes.

      We have very strictly quality controlling system to make sure each hose with good quality standard.



power steering hose manufacturer from China


FAQ:

1. Q: How about your Quality Controlling System?

A: Each step of our production process have the quality checking workers. They will check the products one by one before going to next production step. And before package, our QC workers will choose 15% of the cargo to check the quality again to make sure the cargo is with good quality. If the 15% products have around 1% with defects, we will recheck all pieces of the cargo. And our quality warranty is 2 years. If any quality issues feedback from our customers, we will fully take charge of it.

2. Q: How long is your delivery term?

A: Our standard product delivery term is normally 30 days.

A new product development is 60days including the mass production. Under normal circumstances there are standing stock for regular types.You can email us to learn more details.

3. Q: How many years is your company in auto parts business field?

A: Our Company started since 2005,there is about 16 years history forus in auto parts business field.

4. Q: Are you trading company or factory?

A: We are factory with trading company.

5. Q:What's the MOQ for each item?

A: Our business way is spot sales,if the items we have stock,there is no limitation for MOQ to be manufactured based on your order.
